사운드 플레이스

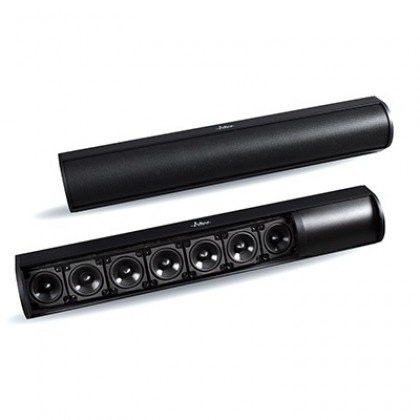

B70

Sound bar

- 100V 또는 8Ω, EN 54-24 유형 B 호환 가능

- 방출거리 : 12m ±5dB

제품설명
상세스펙
기술정보
시스템 구성요소
다운로드

Acoustical data
Max SPL	97dBSPL @ 5m
Sensitivity	71dB/1W @ 2m
Range ±5dB	12m
Frequency bandwidth	(-10dB) 120Hz-18kHz
Horizontal opening angle	40° (1kHz)
Vertical directivity	180° (1kHz)
Electrical data
Continous power	75W
Nominal impedance	8Ω
Connectors	Lever quick connector with loop-through
Protection	Thermal fuse
Certification	EN54-24 certified
Mechanical data
Dimensions (WxPxH)	128mm x 117mm x 706mm
Net / shipping weight	5.4kg / 5.9kg
Environment	IP55 (25° - 55°) / IK08
Colors	white, black

White RAL9016

Black RAL9005

sound-bar-Ray-On-B70-technical-manual-en.pdf
